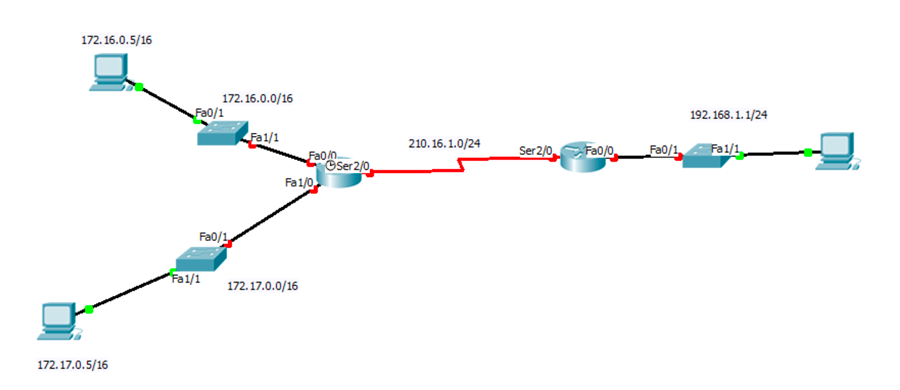

- Cấu hình địa chỉ IP cho các thiết bị
PCs:
• PC1: IP 172.16.0.5/16, Gateway: 172.16.0.1
• PC2: IP 172.17.0.5/16, Gateway: 172.17.0.1
• PC3: IP 192.168.1.1/24, Gateway: 192.168.1.254
Router 1:
interface FastEthernet0/0
ip address 172.16.0.1 255.255.0.0
no shutdown
interface FastEthernet1/0
ip address 172.17.0.1 255.255.0.0
no shutdown
interface Serial2/0
ip address 210.16.1.1 255.255.255.0
clock rate 64000
no shutdown
Router 2:
interface Serial2/0
ip address 210.16.1.2 255.255.255.0
no shutdown
interface FastEthernet0/0
ip address 192.168.1.254 255.255.255.0
no shutdown
- Cấu hình định tuyến tĩnh
Trên Router 1:
ip route 192.168.1.0 255.255.255.0 210.16.1.2
Trên Router 2:
ip route 210.16.1.0 255.255.255.0 210.16.1.1
ip route 172.16.0.0 255.255.0.0 210.16.1.1
ip route 172.17.0.0 255.255.0.0 210.16.1.1 - Cấu hình NAT tĩnh (Static NAT)
Trên Router 1:
ip nat inside source static 172.16.0.5 210.16.1.10
ip nat inside source static 172.17.0.5 210.16.1.20
interface FastEthernet0/0
ip nat inside
interface FastEthernet1/0
ip nat inside
interface Serial2/0
ip nat outside
- Kiểm tra kết nối
• Từ PC3 (192.168.1.1), ping các địa chỉ sau:
• ping 210.16.1.10 ; đại diện cho PC1
• ping 210.16.1.20 ; đại diện cho PC2
